 12V
and 24V DC Energy Efficient Refrigeration
These highly efficient
units with exceptionally low energy consumption require a smaller photovoltaic
(PV) system for your refrigeration needs. SunDanzer units feature 4.33"
(110 mm) of polyurethane insulation and coated steel cabinets. The brushless DC
motor compressor operates on 12 or 24 VDC. A patented low-frost system reduces
frost build-up for low maintenance.
Features for All SunDanzer Chest Style Models:
• Energy-efficient
• Automatic operation
• Thick polyurethane insulation
• Lockable lid
• Interior light
• Corrosion resistant coated steel exterior
• Patented low-frost system
• Easy to clean interior
• Low maintenance
THRIFTY !
|
Model |
Size |
Description |
Energy Usage |
|
DCF165 |
5.8 |
Freezer only |
37 Amp-hrs/day at 12V, 32°C |
|
DCR165 |
5.8 |
Fridge only |
14 Amp-hrs/day at 12V, 32°C |
|
DCF225 |
8 |
Freezer only |
44 Amp-hrs/day at 12V, 32°C |
|
DCF225 |
8 |
Fridge only |
17 Amp-hrs/day at 12V, 32°C |
|
DCF390 |
14.7 |
Freezer only |
67 Amp-hrs/day at 12V, 32°C |
|
Model Number DC_165 |
|
|
Battery-powered freezer, |
12/24V |
|
Gross Capacity: |
5.8 cu. ft./390 liters |
|
Product Dimensions (W x D x H): |
36.8 x 26.2 x 34.5 inches |
|
93.5 x 66.5 x 87.6 cm |
|
Shipping Dimensions (W x D x H): |
41 x 31 x 39 inches |
|
104 x 79 x 99 cm |
|
Shipping Weight: |
25 lb. / 57 kg. |
|
Model Number DC_225 |
|
|
Battery-powered freezer, |
12/24V |
|
Gross Capacity: |
8.1 cu. ft./229 liters |
|
Product Dimensions (W x D x H): |
46.9 x 26.2 x 34.5 inches |
|
119 x 66.5 x 87.6 cm |
|
Shipping Dimensions (W x D x H): |
54 x 31 x 39 inches |
|
137 x 79 x 99 cm |
|
Shipping Weight: |
160 lb. / 73 kg. |
|
Model Number DC_165 |
|
|
Battery-powered freezer, |
12/24V |
|
Gross Capacity: |
14.7 cu. ft./163 liters |
|
Product Dimensions (W x D x H): |
63.4 x 28.7 x 34.3 in |
|
161 x 73 x 87 cm |
|
Shipping Dimensions (W x D x H): |
66.5 x 31.1 x 36.6 inches |
|
169 x 79 x 93 cm |
|
Shipping Weight: |
175 lb. / 79.4 kg. |
Specifications
• Voltage requirement: 12
or 24 VDC
• Refrigerant: R-134a
• Polyurethane insulation: 11 cm (4.33")
• Cable length: 2m (6 ft.)
More Features
SunDanzer chest-style
freezers are easy to clean using the drain hole at the bottom
of the unit. With thick insulation and a refrigeration system optimized for
solar, SunDanzer freezers provide outstanding economical and
reliable operation. SunDanzer cabinets are commercially produced by one of the
world's leading appliance manufacturers.

Upright Refrigerator Freezer
|
Specifications |
DCRF450 - 15 cu. ft.. |
DCRF290 10.2 cu.ft. |
|
Type |
Fridge Freezers |
|
Refrigerator volume |
10 ft3 [283 L] |
8.4 ft3 [238 L] |
|
Freezer volume |
5 ft3 [142 L] |
1.8 ft3 [52 L] |
|
Refrigerator |
37° F ± 2 |
37°F ± 3 |
|
Freezer |
8° F ± 4 |
8°F ± 5 |
|
Ambient range |
60°F to 90°F |
|
Voltage range |
10 to 31 VDC |
|
Energy use at 90° F |
0.89 kWh/d |
0.8 kWh/d |
|
Energy use at 70° F |
0.55 kWh/d |
0.5 kWh/d |
|
Refrigerant |
R-134a |
|
Input Power |
70-110 Watts |
|
Defrost |
Manual |
|
External dimensions |
74¾ x 30¾ x 28½ in. |
25.3 x 29.9 x 68.5 in. |

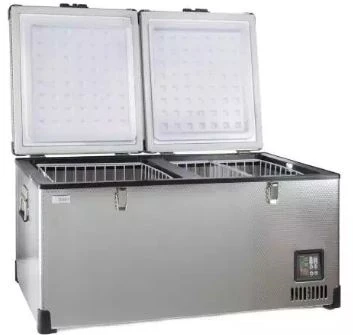

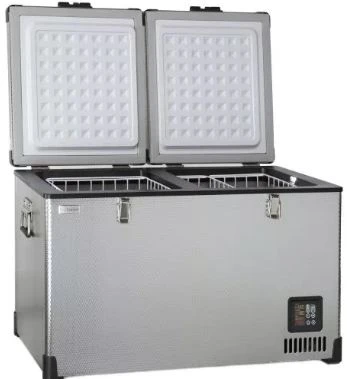

Portable Fridge / Freezers
SunDanzer's new dual zone
fridge and freezer portable chest coolers makes luxurious and reliable outdoor
living easy and cost effective for every adventure. Featuring independently
controlled zones, capable of either freezing, cooling or both at the same time.
The combined 68 liters of internal storage, capable of being cooled down to -7F
or -22C controlled by a digital control panel, accompanied by stainless steel
spring loaded handles and lid latches, integrated protection systems, removable
gaskets and drains, and rubber corner guards, makes portable refrigeration
easier and more convenient than ever before.
A no maintenance, brushless,
thermostatically controlled DC compressor operates directly on 12 or 24 VDC.
With a direct DC power cord, an inverter, and an AC power cord allows for a
hassle free experience when transferring from your house, to your truck, boat,
or RV.
|
Specifications |
SD-68 |
SD-90 |
 |
 |
|
Type |
Fridge or Freezer one side or Both |
|
Total volume |
2.4 ft3 [68L] |
3.17ft^3 (90L) |
|
Capacity (each side) |
L: 40L/ R: 28L |
L: 52L/ R: 38L |
|
Temperature range |
-7°F to +59° F (-22°C to +15°C) |
|
Ambient range |
50°F to 109°F (10°C to 43°C) |
|
Energy use |
52W |
54W |
|
Refrigerant |
R134a |
|
Input Power |
12 or 24 VDC |
|
Dimentions (L xW x H) |
33.2 x 19.5 x 21.4 in |
37.4 x 21.4 x 18.6 in |
|
Weight |
69.44 lbs (31.5 kgs) |
72.75 lbs (33.0 kgs) |
|
